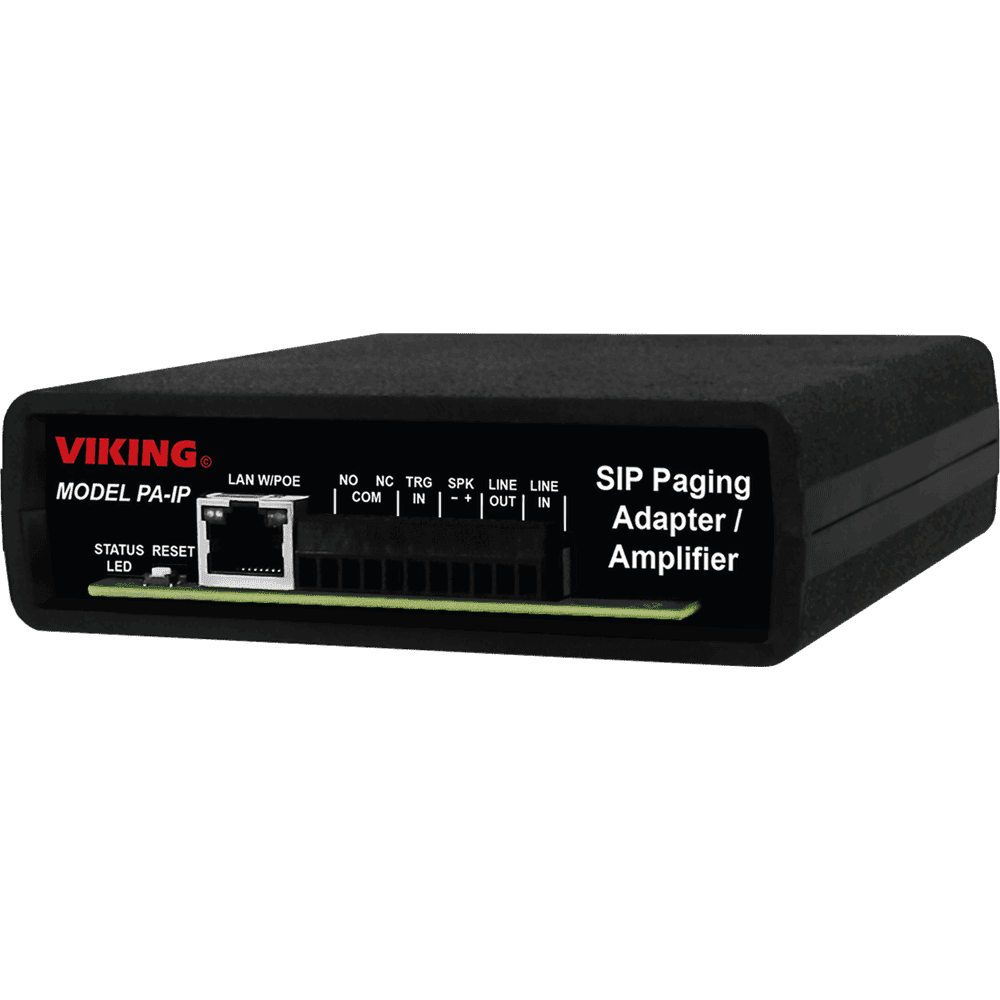

Viking PA-IP
PoE SIP/multicast paging adapter with built-in 6-watt amplifier.
$568.00
- Bridges VoIP phone systems to analog paging - no ATA or FXS port needed
- Built-in high-efficiency 6 W class D amplifier drives up to six 8-ohm speakers
- Works as a SIP endpoint or multicast group member with zoned multicast receive
- PoE class 3 powered from a single CAT5/6 cable
- Line-level output feeds larger external amplifiers; line input for background music
- Programmable relay output for external amps, door locks, or strobe lights
- Trigger input enables loud ringing / night bell from a contact closure
- Up to 105 dB SPL driving a Viking 40AE ceiling speaker
SIP/Multicast paging adapter with built-in 6-watt amplifier connecting VoIP systems to analog paging, PoE-powered for SIP and multicast functionality.
Source: https://www.vikingelectronics.com/products/PA-IP
- Brand
- Viking
- Item #
- H4JZEOQ36SJVNUGZHFFGXJL6
- Support
- Local installation & support from Windham, Maine
In Stock— only 2 left
Qty:
Secure Square checkout · Local pickup & professional installation available — ask us
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
Amplifier & Audio
- Amplifier
- 6 W class D, drives up to six 8-ohm speakers in parallel
- Max output
- 105 dB SPL with one Viking 40AE ceiling speaker
- SIP codecs
- G.711u, G.711a, G.722
- Multicast codecs
- G.711u, G.722 (G.722 requires IP firmware R8.1.1912+)
- Background music
- Line-level audio input
SIP & Paging
- Modes
- SIP endpoint or multicast group member
- Zoning
- Zoned multicast receive with access code protection
I/O
- Relay output
- Programmable - external amplifiers, door locks, strobe lights
- Trigger input
- Contact closure activation (loud ringing / night bell)
- Line out
- Line-level output for external amplifiers
Power & Physical
- Power
- PoE class 3 (<13 W)
- Network
- RJ45 10/100 Base-T
- Dimensions
- 5 x 5.25 x 1.5 in. (127 x 133 x 38 mm)
- Operating temperature
- -40 F to 140 F (-40 C to 60 C)
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
