Viking

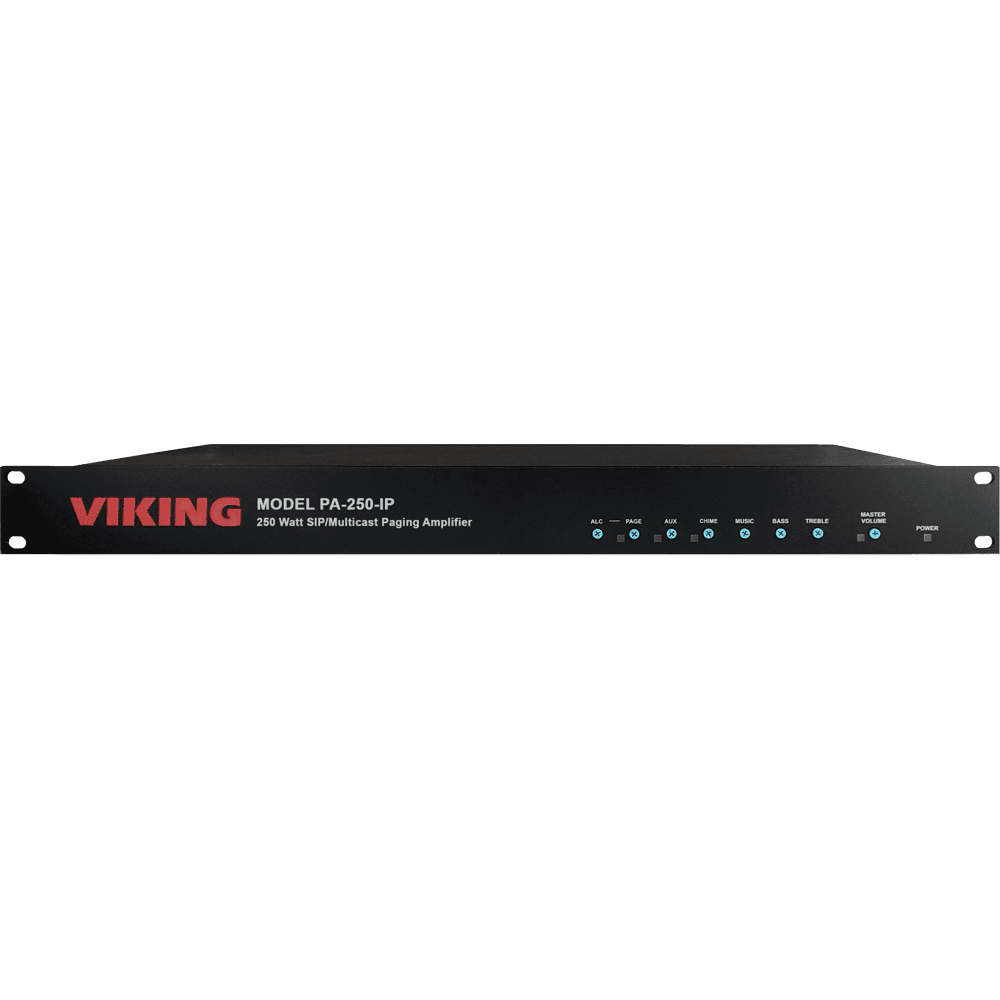

Viking PA-250-IP
250-watt 70V SIP/multicast paging amplifier for large speaker runs.
$1,408.00
- 250 watts at 70V (or 150 watts at 25V) for building-wide paging
- Drives up to 250 speakers at 70V (1-watt taps) from a single unit
- SIP 2.0 (RFC 3261) endpoint or multicast group member with zoned receive
- 600-ohm output cascades to additional amplifiers for bigger systems
- 3.5mm auxiliary input for background music sources
- Bass, treble, automatic level control, and peak limiting on board
- Door chime trigger input and per-input volume controls
- AC powered (100-240V) - no PoE budget required; 19-inch rack form factor
250-watt SIP/multicast paging amplifier with 1U rack-mount design for driving up to 250 speakers. Features 70V output, background music input, and programmable night ring.
Source: https://vikingelectronics.com/products/pa-250-ip/
- Brand
- Viking
- Item #
- FRTXTY6XFZLJGMFR4FQLFN73
- Support
- Local installation & support from Windham, Maine
In Stock— only 1 left
Qty:
Secure Square checkout · Local pickup & professional installation available — ask us
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
Amplifier & Audio
- Output power
- 250 W @ 70V or 150 W @ 25V
- Speaker capacity
- Up to 250 70V speakers or 150 25V speakers (1 W taps)
- SIP codecs
- G.711u, G.711a, G.722
- Multicast codecs
- G.711u, G.722
- Tone controls
- Bass and treble; adjustable automatic level control; peak limiting
SIP & Paging
- SIP
- SIP 2.0 RFC 3261 compliant endpoint or multicast group member
- Zoning
- SIP paging and zoned multicast reception
I/O
- Network
- RJ45 10/100 Base-T
- Aux input
- 3.5mm audio input
- Cascade output
- 600 ohm output for additional amplifiers
- Trigger
- Door chime trigger input
- Speaker terminals
- Removable cage clamp screw terminals
Power & Physical
- Power
- 100-240VAC 50/60 Hz (no PoE required)
- Dimensions
- Approx. 19 x 1.75 x 6 in. (483 x 44.5 x 153 mm)
- Weight
- 5.3 lbs (2.4 kg)
- Operating temperature
- 32 F to 90 F (0 C to 32 C), 5-95% non-condensing
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
