Viking

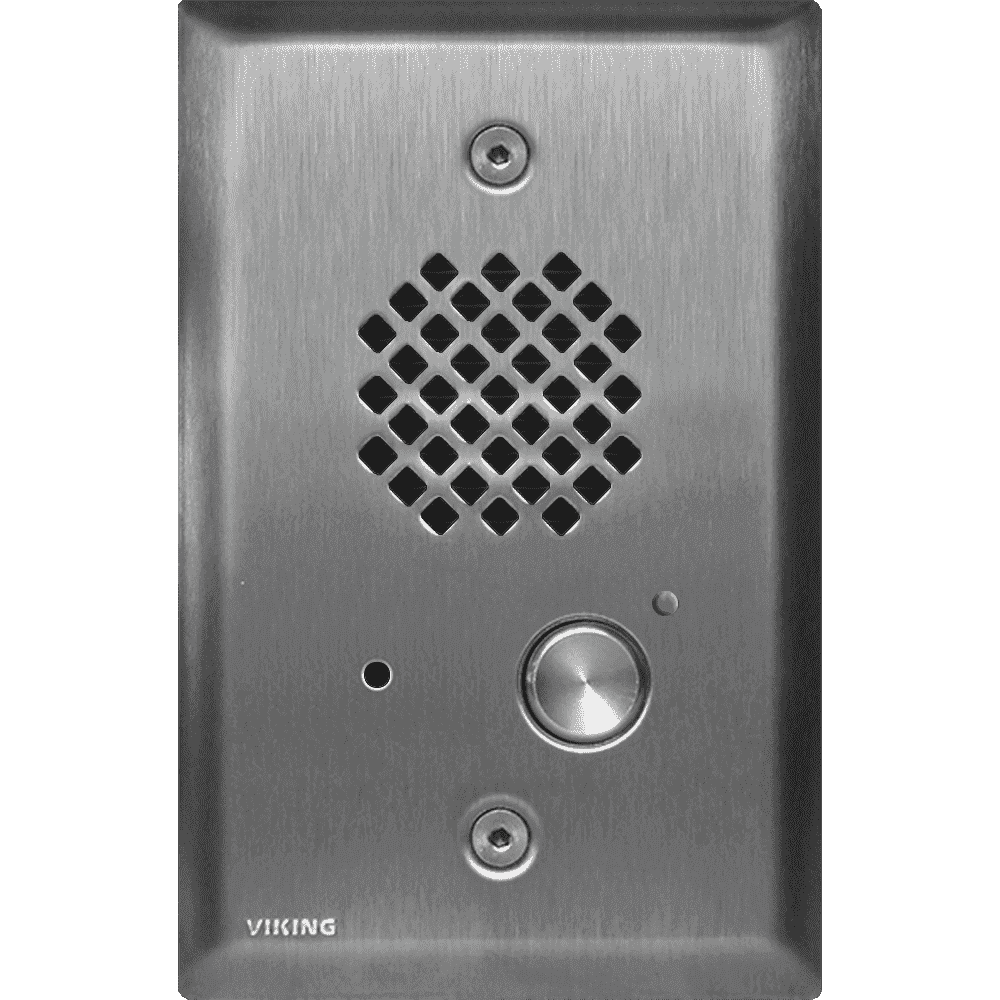

Viking E-40-SS-EWP
Vandal-resistant analog entry phone powered by the telephone line.
$652.00
- Handsfree two-way door/gate communication over a standard analog line or PABX station port
- Telephone line powered - no local power required (24VDC / 20mA minimum)
- 18-gauge 304 stainless steel faceplate with brushed finish
- Programmable call progress detection auto-hangs-up on CPC, silence, busy, or timeout
- Selectable auto-answer mode for monitoring applications
- Pairs with Viking C-250/C-500/C-2000B controllers for door/gate relay control
- Flush mounts in a single gang electrical box; surface-mount enclosures available
- EWP (Enhanced Weather Protection) variants for outdoor installs
Compact stainless steel entry phone with IP66 weather protection for handsfree door/gate communication and vandal resistance.
Source: https://www.vikingelectronics.com/products/E-40-SS-EWP
- Brand
- Viking
- Item #
- LJUZ5E2G7TIKXZXENIJAN6NM
- Support
- Local installation & support from Windham, Maine
In Stock— only 1 left
Qty:
Secure Square checkout · Local pickup & professional installation available — ask us
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
Operation
- Type
- Analog handsfree entry phone (not SIP; use E-60-IP/E-30-IP for VoIP)
- Power
- Telephone line powered, 24VDC / 20mA minimum
- Call handling
- Auto hang-up on CPC, silence, busy, or timeout; selectable auto answer
- Speed dialing
- Via Viking K-1900-5 or K-1900-30 auto dialers
Door Control
- Relay control
- Via Viking C-200 / C-250 / C-500 / C-2000B controllers on a single phone line
Physical
- Faceplate
- 18 gauge 304 stainless steel, #4 brushed finish
- Faceplate size
- 4.875 x 3.125 x 0.18 in.
- Mounting
- Flush in single gang box (2.25 in. deep x 2.00 in. wide x 2.84 in. tall min.) or surface enclosure
Environmental
- Operating temperature
- -30 F to 150 F (-34 C to 65 C)
- Weather option
- EWP (Enhanced Weather Protection) variants, e.g. E-40-SS-EWP
- Finishes
- Stainless steel (E-40-SS) and other faceplate finishes
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
