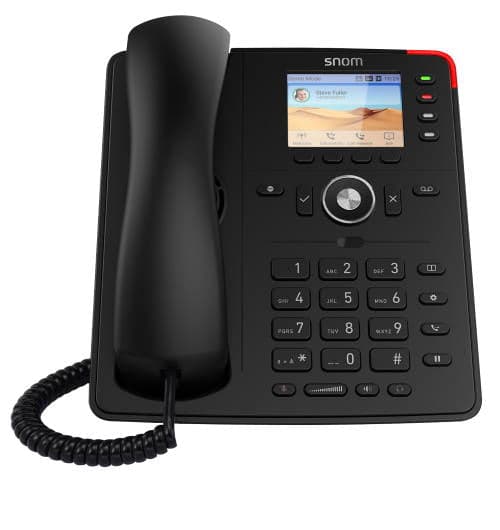

Snom D713
Cost-effective entry into professional VoIP with colour display and Gigabit PoE
$107.00
- 6 SIP identities/accounts with up to 6 simultaneous calls
- High-resolution 2.8" colour TFT display (320 x 240), backlit
- 4 freely programmable SmartLabel keys with multicolour LEDs
- Gigabit Ethernet with Power over Ethernet (IEEE 802.3af, Class 3)
- Full-duplex speakerphone with acoustic echo cancellation; HD audio
- Codecs: G.711 (A-law/u-law), G.722, G.726, G.729, GSM 6.10, Opus
- EHS adapter socket for wireless headsets; hearing aid compatible
- Desktop or wall mounting; security via TLS, SRTP and OpenVPN
- Brand
- Snom
- Item #
- T54CUI4BO2TCYBLJRPWUAGY6
- Support
- Local installation & support from Windham, Maine
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
Display & Keys
- Display
- 2.8" (67 mm) TFT LCD, graphical, high-colour, backlit
- Resolution
- 320 x 240 pixels
- Key labeling
- SmartLabel on-screen labels
- Programmable keys
- 4 SmartLabel keys with multicolour LED
- Hard keys
- 38 total incl. 5-way navigation, 4 context-sensitive keys, 5 audio keys, 8 dedicated function keys
- LED indicators
- 5 (1 red call-status LED, 4 multicolour function-key LEDs)
Connectivity
- Ethernet
- RJ45 Gigabit Ethernet (GbE); Gigabit switch with PoE support
- PoE
- IEEE 802.3af, Class 3 | IEEE 802.3az
- Headset
- RJ9 headset socket; EHS adapter via RJ12 socket
- Power adapter
- Optional 5 V DC / 2 A, 10 W (sold separately)
Audio
- Speakerphone
- Full duplex with acoustic echo cancellation (AEC)
- Handset
- Hearing aid compatible (HAC)
- Codecs
- G.711 (A-law, u-law), G.722, G.726, G.729, GSM 6.10 (FR), Opus
- DTMF
- SIP-INFO, in-band, out-of-band (RFC 2833)
Calling & Directory
- SIP identities
- 6 accounts, up to 6 simultaneous calls
- Local directory
- Up to 1,000 entries; LDAP support
- Conferencing
- 3-way local conferencing
- Security
- TLS 1.2, SIPS, SRTP, SRTCP, HTTPS, IEEE 802.1X, OpenVPN
Physical
- Placement
- Desktop or wall mounting
- Dimensions
- 205 x 185 x 40 mm without footstand
- Weight
- Approx. 710 g without footstand, 830 g with footstand
What's in the box
- IP desk phone D713
- Footstand
- Corded handset
- Ethernet cable
- Quick Installation Guide
- GNU General Public License
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
