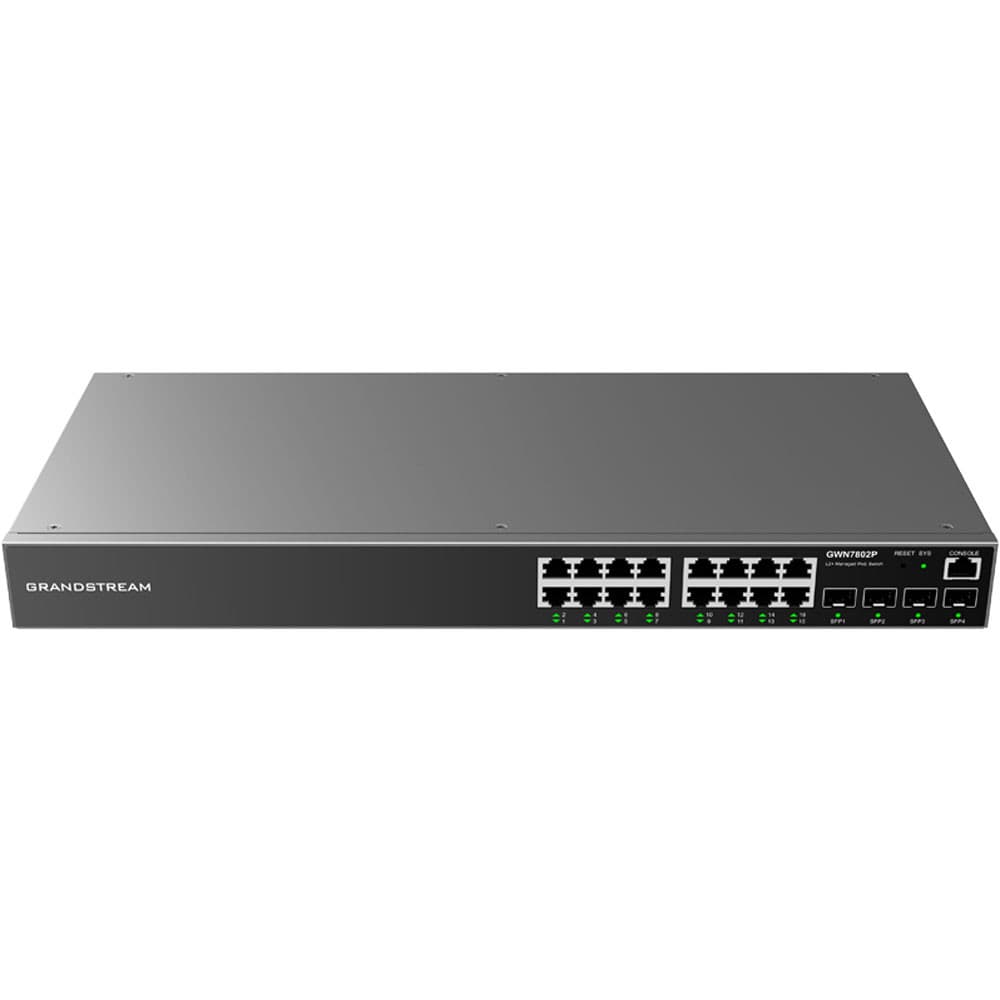

Grandstream GWN7802P
Enterprise Layer 2+ managed 16-port gigabit PoE+ switch with 240W power budget and cloud management.
$255.00
- 16 Gigabit RJ45 ports plus 4 Gigabit SFP uplinks for flexible fiber connectivity
- 16 PoE+ ports delivering up to 30W each and a 240W total PoE budget for phones, cameras and APs
- 40 Gbps switching capacity with 29.76 Mpps forwarding rate for non-blocking performance
- Advanced VLAN segmentation with 4K VLANs and 8K MAC address table
- Layer 2+ features including static routing, link aggregation and STP/RSTP/MSTP
- Comprehensive security: ARP inspection, IP source guard, DoS protection, DHCP snooping and 802.1X
- Smart dynamic PoE allocation with per-port priority and scheduling
- Managed via embedded controller, GDMS Networking, GWN Manager or a GWN router
- Brand
- Grandstream
- Item #
- DHWOM6NHZAPW6K2RZXNIHLGZ
- Support
- Local installation & support from Windham, Maine
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
See it in action
Video: “Grandstream GWN7802P Pro Switch Unbox, Specs, Install & Overview” by MrTimTech on YouTube.
Technical Specifications
Ports
- Gigabit Ethernet Ports
- 16
- 1G SFP Ports
- 4
- Console
- 1
- Auxiliary
- 1× Reset Pinhole
PoE
- PoE Standard
- IEEE 802.3af/at
- PoE Ports
- 16
- Max Power per Port
- 30W
- Max Total PoE Power
- 240W
- Integrated Power Supply
- 270W
Performance
- Switching Capacity
- 40 Gbps
- Total Non-blocking Throughput
- 20 Gbps
- Forwarding Rate
- 29.76 Mpps
- Packet Buffer
- 4.1 Mb
- Forwarding Mode
- Store-and-forward
- Network Latency
- Avg <4µs
- Jumbo Frame
- 10240 bytes
Switching & VLAN
- MAC Address Table
- 8K
- VLANs
- 4K (802.1Q, port/MAC/protocol-based, QinQ)
- Link Aggregation Groups
- 8
- Spanning Tree
- STP/RSTP/MSTP/PVST(+)/RPVST(+)
- ACL
- 1.5K for Ethernet, IPv4 and IPv6
- Static Routing
- 32 IPv4 / 32 IPv6
- Memory
- 128MB RAM, 32MB Flash
Management
- Management
- Embedded controller, GDMS Networking, GWN Manager, GWN router
- Access
- Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3
Physical & Power
- Dimensions
- 440 × 200 × 44 mm
- Unit Weight
- 3 kg
- Fans
- 2
- Operating Temperature
- 0°C to 45°C
- Mounting
- Desktop, Wall-Mount or Rack-Mount
What's in the box
- 1× Switch
- 1× 1.2m (10A) AC Cable
- 1× 25cm Ground Cable
- 4× Rubber Footpads
- 8× Screws (KM3*6)
- 1× Simplified Quick Installation Guide
- 1× Regulatory Paper
- 2× Rack Mounting Kits
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
