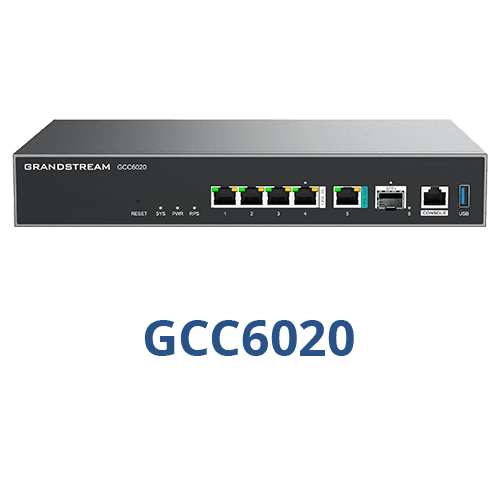

Grandstream GCC6020
High-performance UC + networking convergence device with 10G SFP+, 6.5 Gbps routing, 120W PoE, and built-in IP PBX for growing SMBs.
$414.00
- 4-in-1 convergence device: VPN router, next-generation firewall, IP PBX, and network switch in one rack-mountable platform
- Built-in IP PBX supports 50 users and 16 concurrent calls by default, with capacity upgrades available for purchase
- 6.5 Gbps routing with 1x 10 Gigabit SFP+, 1x 2.5 Gigabit, and 4x Gigabit Ethernet ports (WAN/LAN configurable, up to 3 WAN)
- 5 PoE output ports (IEEE 802.3af/at) with 120W maximum PoE budget and redundant power system (RPS) input
- 6 Gbps next-gen firewall throughput (DPI+IPS) with anti-virus, Layer 3-7 IDS/IPS, SSL proxy, email security, and Geo-IP filtering
- Full VPN suite: IPsec (1.3 Gbps throughput), OpenVPN, WireGuard, PPTP, and L2TP; 1M NAT sessions
- Built-in audio/video conferencing with Wave desktop, web, and mobile apps; codecs include Opus, G.722, G.711, and H.264
- Managed via cloud (GDMS), GWN app, local web GUI, SSH, SNMP, and CLI; controls up to 300 GWN access points and 500 clients
- Brand
- Grandstream
- Item #
- F2FRBKA5APCZJY7ZEILHVYHM
- Support
- Local installation & support from Windham, Maine
In Stock— only 7 left
Secure Square checkout · Local pickup & professional installation available — ask us
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
System & Routing
- CPU
- Quad-core Cortex-A73, 1.8 GHz
- Memory
- 4 GB RAM, 32 GB eMMC flash
- External storage
- Optional M.2 SSD
- Routing throughput
- 6.5 Gbps
- IPsec VPN throughput
- 1.3 Gbps
- NGFW throughput (DPI+IPS)
- 6 Gbps
- NAT sessions
- 1M
Ports & PoE
- Network ports
- 1x 10 Gigabit SFP+, 1x 2.5 Gigabit, 4x Gigabit Ethernet (WAN/LAN configurable, max 3 WAN)
- PoE output
- 5x PoE out ports, IEEE 802.3af/at, 120W maximum PoE budget
- Auxiliary ports
- 1x Console, 1x USB 3.0
- Redundant power
- RPS input: 54V DC / 2.8A
Security & VPN
- Firewall
- DPI, anti-virus, IPS/IDS, SSL proxy, DoS and spoofing defense, DMZ, port forwarding, traffic rules
- Content control
- DNS filtering, web URL/class/keyword filtering, application control, email security, Geo-IP filtering
- VPN types
- IPsec (site-to-site, client-to-site), OpenVPN server/client, WireGuard, PPTP server/client, L2TP
- Device security
- Encrypted traffic, secure boot, unique security certificates
IP PBX
- Capacity
- 50 users and 16 concurrent calls by default; upgrades available for purchase
- Voice/video codecs
- Opus, G.711 A/U-law, G.722, G.722.1/C, G.723.1, G.726-32, G.729A/B, iLBC, GSM, T.38, H.264, H.263/+, VP8
- PBX features
- Call forwarding, transfer, parking, intercom/paging, IVR, emergency calls, audio/video conferencing with Wave apps
- Integration
- Full API, PMS, call center, and CRM integration
Management & Physical
- Management
- GDMS cloud, GWN app, local web GUI, SSH, SNMP (v1/v2c/v3), CLI
- Network capacity
- Up to 300 GWN APs, up to 500 clients
- Power
- Universal power adapter included: 54V DC, 2.8A (150W)
- Mounting
- Desktop, wall, and rack-mountable
- Dimensions
- 280 x 185.5 x 44 mm
- Weight
- 1.5 kg
- Operating temperature
- 0 to 45 C
What's in the box
- GCC6020 unit
- Universal power supply
- Rack mount kit
- Quick installation guide
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
