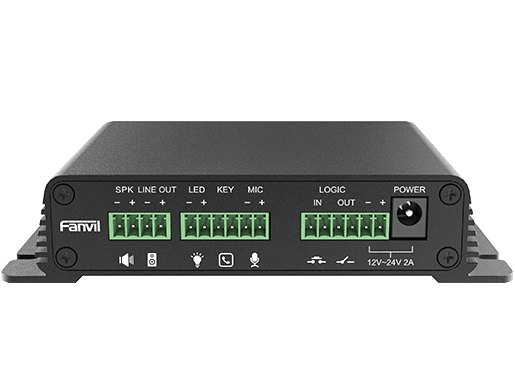

Fanvil PA2S SIP Paging Gateway
Compact SIP paging gateway with built-in 30W amplifier and video intercom linkage.
$194.00
- 2 SIP lines turn any speaker into an IP paging or intercom endpoint
- 10W-30W mono amplifier output scales with supply voltage (PoE up to 30W at 24VDC)
- Links with an IP camera via dedicated RJ45 port for video intercom and NVR recording
- MP3 and online broadcasting with time-plan task scheduling
- Emergency call button interface with programmable DSS keys (LED supported)
- Built-in relay for door strikes or alarms (max DC30V/2A, AC125V/0.5A)
- Wideband G.722 and Opus audio plus full-duplex AEC speakerphone
- Rugged aluminum housing rated -40 C to 70 C for industrial installs
- Brand
- Fanvil
- Item #
- 27VANWLEBOUHIXXUTJXLAWUJ
- Support
- Local installation & support from Windham, Maine
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
SIP & Calling
- SIP lines
- 2
- Protocols
- SIP v1 (RFC2543) / v2 (RFC3261) over UDP/TCP/TLS, RTP/RTCP/SRTP
- Call features
- Speed dial, auto-answer, call waiting, intercom, multicast, anonymous call
- Broadcasting
- MP3 broadcasting, incoming call multicast, dynamic multicast, time plans
- Integration
- HTTP API, Action URL / Active URI
Amplifier & Audio
- Passive speaker output (4 ohm)
- PoE/10W, 12V/10W, 18V/20W, 24V/30W
- Passive speaker output (8 ohm)
- PoE/5W, 12V/5W, 18V/10W, 24V/15W
- Line out
- Volume-adjustable, max 1.2 Vpp (for active speakers)
- Recording output
- 3.5mm port, 15 ohm - mixed local mic and call audio
- Mic/Line in
- Multiplex port; electret condenser mic recommended
- Narrowband codecs
- G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
- Wideband codecs
- G.722, Opus
- Speakerphone
- Full-duplex hands-free with AEC
I/O & Video
- Camera port
- RJ45 for IP camera - video intercom and NVR recording
- Relay
- Short-circuit in/out, built-in relay max DC30V/2A, AC125V/0.5A
- DSS key port
- External buttons with LED output (5.0VDC/5mA)
Network
- Ethernet
- 2x RJ45 10/100 Mbps (WAN with PoE + camera port)
- IP
- IPv4/IPv6, static/DHCP/PPPoE, VLAN, VPN (L2TP/OpenVPN)
- Provisioning
- FTP/TFTP/HTTP/HTTPS/DHCP opt66/SIP PnP/TR-069
Power & Physical
- Power
- PoE class 3 or DC 12V-24V/2A (dual input)
- Power consumption
- 2.16-8.98 W (PoE)
- Housing
- Aluminum alloy, desktop stand or wall-mounted
- Dimensions
- 113 x 83 x 28 mm
- Operating temperature
- -40 C to 70 C, 10-95% humidity
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
