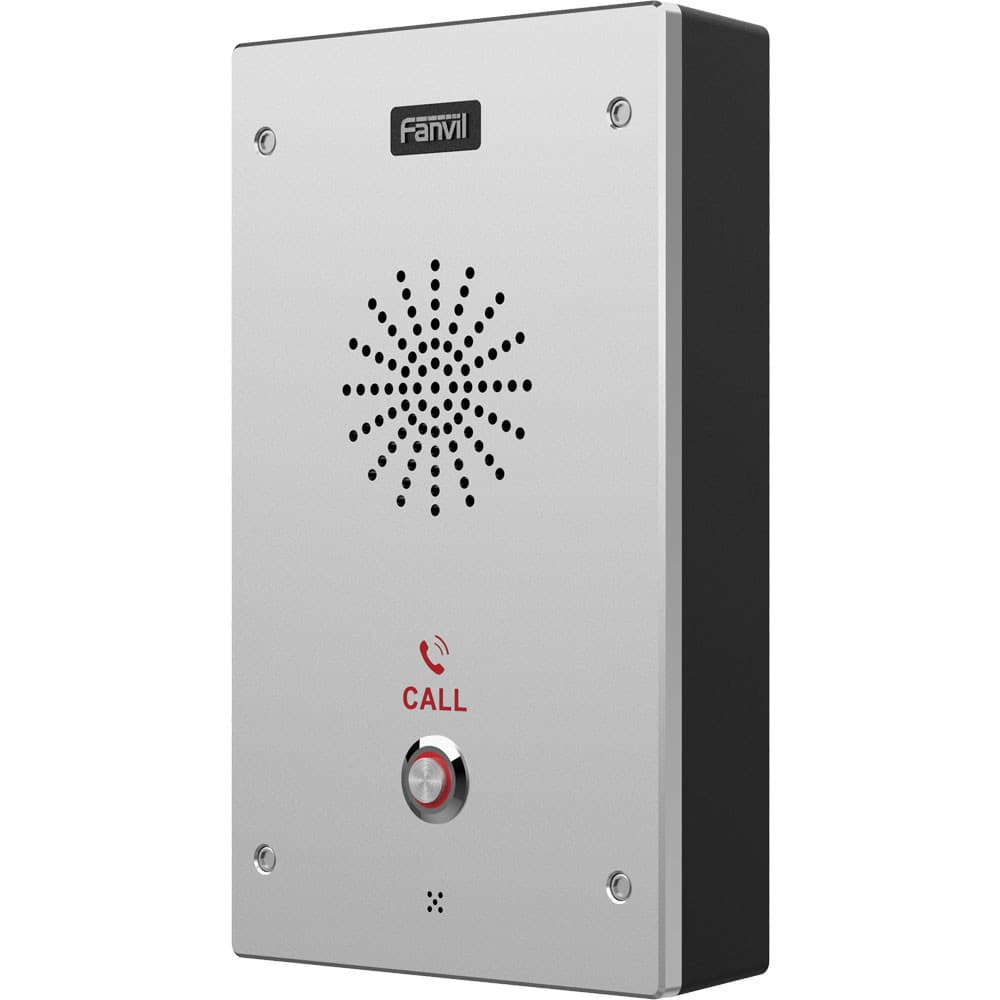

Fanvil i16S SIP Intercom
Rugged outdoor SIP intercom with IP65/IK10 protection.
$276.00
- 2 SIP lines designed for outdoor door-entry and intercom scenarios
- IP65 dust/water resistance and IK10 anti-vandal aluminum alloy shell
- Anti-tamper alarm triggers when the cover is separated from the housing
- HD voice with built-in 3W speaker and full-duplex Acoustic Echo Canceller
- 2 short-circuit input ports and 2 relay output ports for door and alarm control
- Built-in TF card slot for storage
- PoE-enabled (Class 3) plus wide-range DC 12V-24V power input
- Brand
- Fanvil
- Item #
- ZU24RS7B326RPHFKMZAOQY6V
- Support
- Local installation & support from Windham, Maine
Authorized dealer
Genuine equipment with full manufacturer warranty
Local setup available
We can pre-configure and install — Windham, Maine based
Secure Square checkout
Pay by card with Square — pickup or shipping arranged
Technical Specifications
Audio
- SIP lines
- 2
- Narrowband codecs
- G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
- Wideband codecs
- G.722, Opus
- Speaker
- Built-in 3W mono active speaker
- Echo cancellation
- Full-duplex hands-free with AEC
Hardware & I/O
- DSS key
- 1 (supports LED)
- Line out port
- x1, adjustable, max up to 1.2Vpp
- Recording output port
- x1, impedance 15 Ohm
- Short-circuit in/out
- x2 (built-in relay), max DC30V/2A, AC125V/0.5A
- Tamper alarm switch
- x1
- TF card slot
- x1
Protection & Rating
- Protection level
- IP65 and IK10
- Housing material
- Aluminum alloy shell
- Working temperature
- -30°C to 60°C
- Working humidity
- 10-95%
- Dimensions
- 195 x 120 x 40 mm
- Installation
- Wall-mounted
Network & Power
- Network
- 10/100 Mbps Ethernet, RJ45 x1
- IP mode
- IPv4/IPv6
- PoE
- Enabled, Class 3
- DC power input
- DC 12V-24V/1A (2-pin terminal socket)
Specifications summarized from the manufacturer's published datasheet. Questions about fit for your setup? Ask us — free advice, no pressure.
